Specifications
- Stainless steel is nickel-bearing, 200 series minimum. This material is NSF recognized for corrosion resistance.
- 18 gauge stainless steel body and 20 gauge doors.
- 16 gauge stainless tray slides with 14 gauge uprights.
- 16 gauge bottom and top.
- Double pan door with 1" rigid fiberglass insulation for sound deadening.
- Door mounted on stainless steel lift off hinges which allow 270 degree door swing.
- Stainless steel flush mount paddle latch.
- Non-marking vinyl perimeter bumper.
- Vent louvers in cart sides and back.
- Floor drains.
- 8" diameter cushion casters (two swivel with manual brakes, two rigid casters without brakes) on two door models.
- 6" diameter casters on single door models.
- Removable and adjustable tray slides accommodate either 14" x 18" or 15" x 20" trays at 5" spacing.
- Ledges are 2" wide.
- Vertical push handles on single door models.

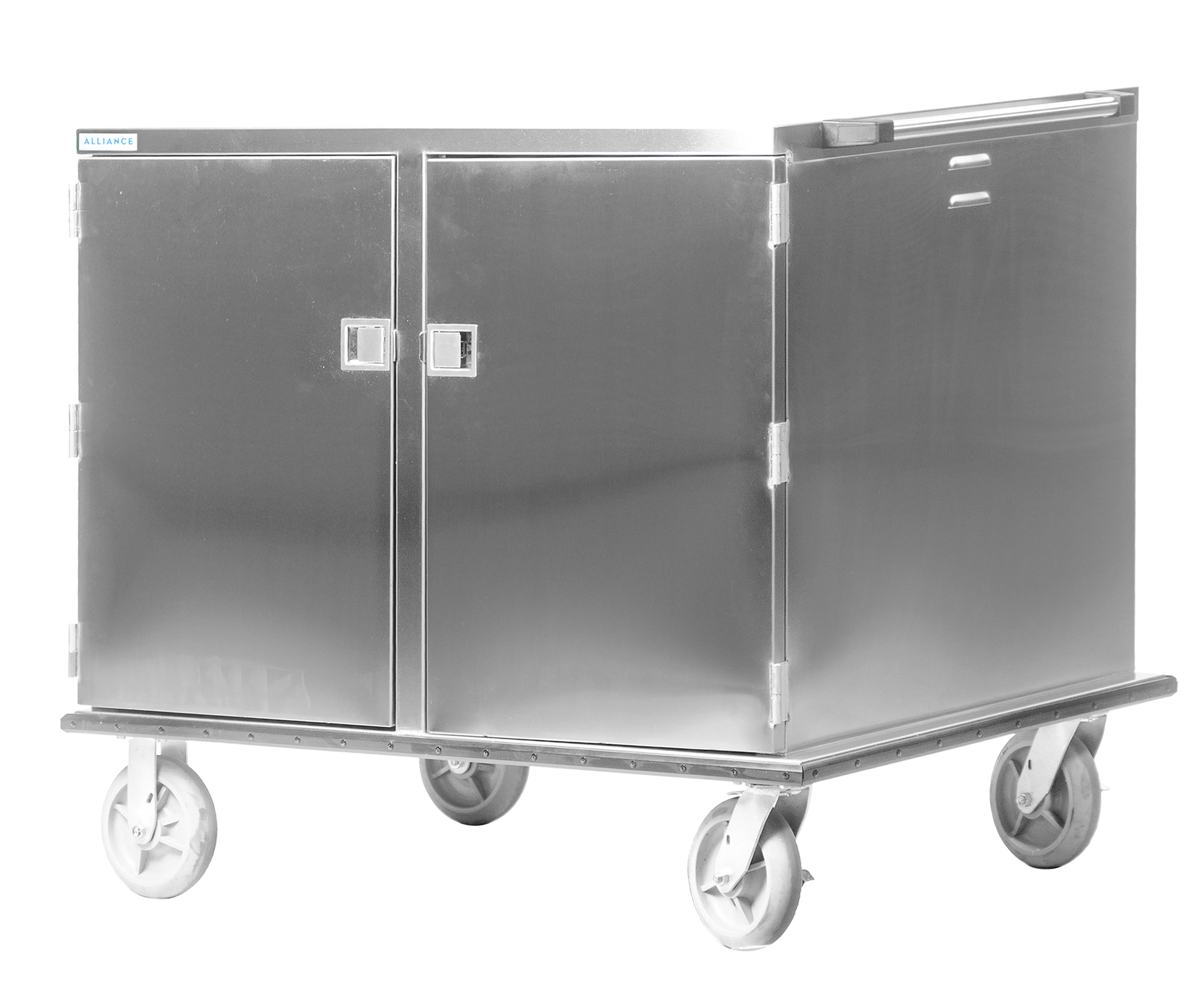

- Horizontal push handles on double door models.
Options
- 8" diameter casters for single door models
- Please contact our facility at 615-895-5333 with inquiries for custom tray sizes, capacities, and ledge spacing.
Dimensions - Examples of Previous Models
| Model | Tray Capacity | Ledge Spacing | # of Interior Compart-ments |
Overall Size | Casters | Shipping Weight |
Case Cube | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | D | H | Type | Dia. | lbs. | Cu. ft. | |||||
| D18TC | 18 ea. | 14"x18" or 15"x20" | 5" |
1 | 27 1/2" | 36 3/4" | 56" | 2 swivel, 2 fixed |
6" | 300 | 37.6 |
| D20TC | 20 ea. | 14"x18" or 15"x20" | 5" |
1 | 27 1/2" | 36 3/4" | 61" | 2 swivel, 2 fixed |
6" | 320 | 40.8 |
| D24TC | 24 ea. | 14"x18" or 15"x20" | 5" |
2 | 52" | 35" | 41" | 2 swivel, 2 fixed |
8" | 425 | 50.9 |
| D28TC | 28 ea. | 14"x18" or 15"x20" | 5" |
2 | 52" | 35" | 46" | 2 swivel, 2 fixed |
8" | 450 | 57.8 |
| D32TC | 32 ea. | 14"x18" or 15"x20" | 5" |
2 | 52" | 35" | 51" | 2 swivel, 2 fixed |
8" | 475 | 63.6 |
Drawings
